Ibis Air Conditioners

All settings of the device (e. g. temperature settings, timer programming) are transmitted to the roof air conditioner by remote control.

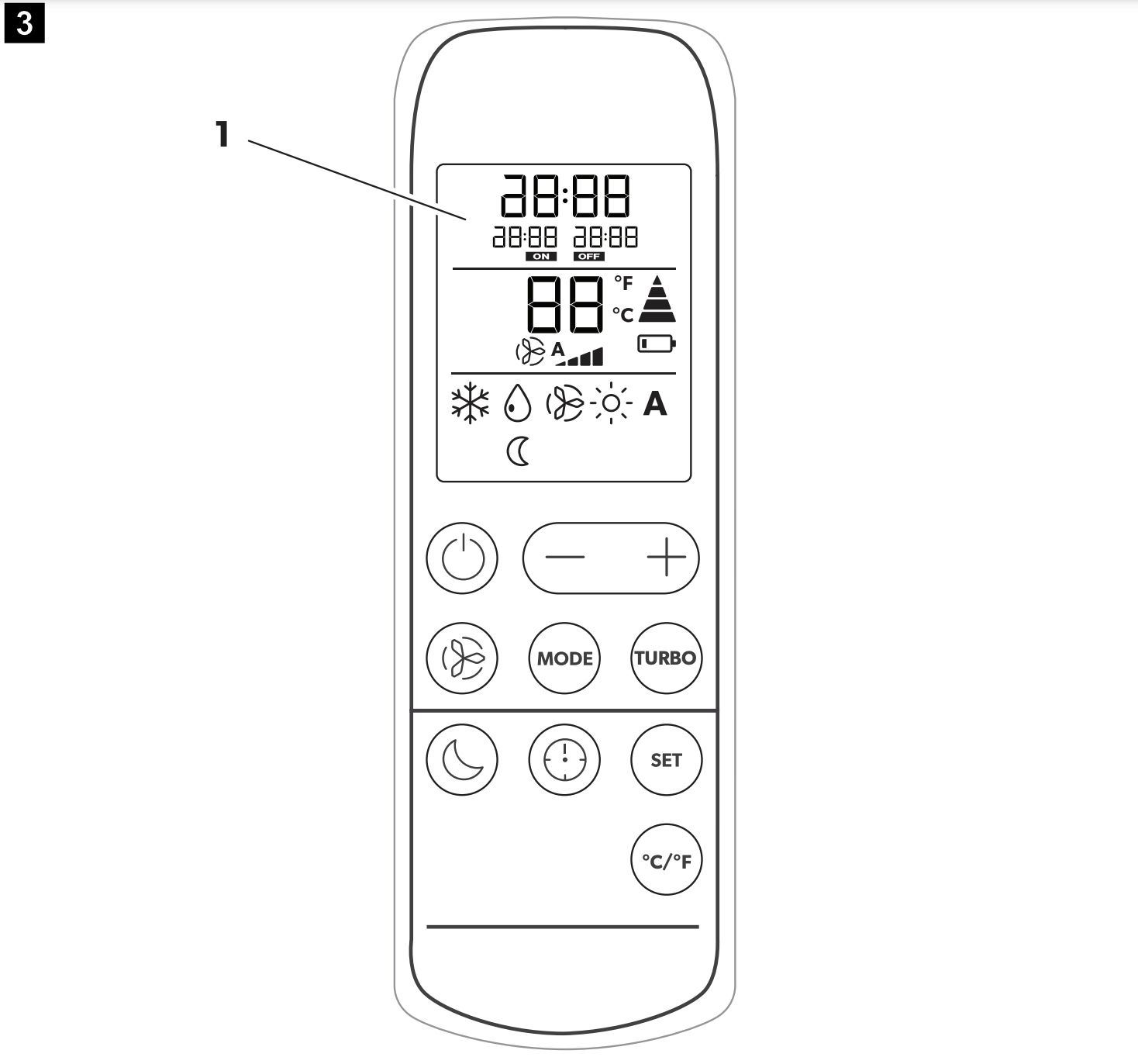

The following control and display elements are available on the remote control Fig. 3.

Button

1. Display
   Displays the following:

• Time

• Selected room temperature (target value) in °C or °F

• Actual room temperature

• Air conditioning mode

• Fan level

• Symbols for active additional functions

• Battery status

Button & explanation

Switches the roof air conditioner on or to standby mode

Increases the currently displayed value.
Reduces the currently displayed value.

Adjusts the fan speed between Low, Med, High, Turbo or Auto (shown as 1, 2, 3, 4 or AA on the air distribu-tion box display for a short time when changed)

Selects the air conditioning mode

Selects the turbo mode.

Sets the fan speed to Turbo speed to rapidly cool or heat the inside of the vehicle. After it is pressed again the fan will return to the previous setting.

Activates the sleep function.

Sets the timer and the clock.

Finishes timer and clock settings.

Switches between temperature units Celsius (°C) and Fahrenheit (°F).
