Americana Refrigerators

RM2351 RM2354 RM2451 RM2454 RM2551 RM2554 DM2652 DM2662 DM2663 DM2852 DM2862 NDM1062

1

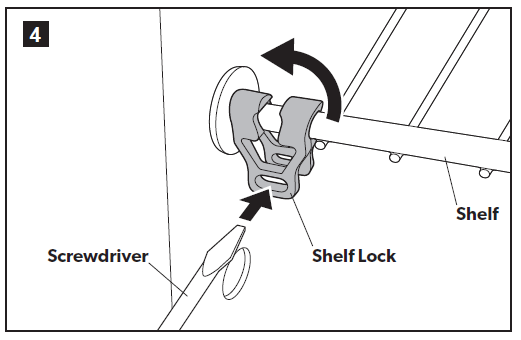

Remove the shelf locks by inserting the tip of a flat bladed screwdriver into the slot of the locks. Turn the screwdriver counterclockwise and then remove the shelf locks from the wire shelf.

2
Tilt the shelf to one side at an angle while pulling forward.

3
Reposition the shelf in the desired location. Insert the ends of the wire shelf on the left-hand side and slide the shelf into the holes on the right-hand side.

4
Slide the plastic plugs into the holes of the wall.

5
Snap the shelf locks onto the wire shelf.

DM2672 DM2682 DM2683 DMA4061 DMA4064 DMA4067 DMA4068 DM2872 DM2882 DMA4081 DMA4084 DMA4087

1
Remove the shelf locks by inserting the tip of a flatbladed screwdriver into the slot in the locks.

2
Turn the screwdriver counterclockwise and remove the shelf locks from the wire shelf.

3

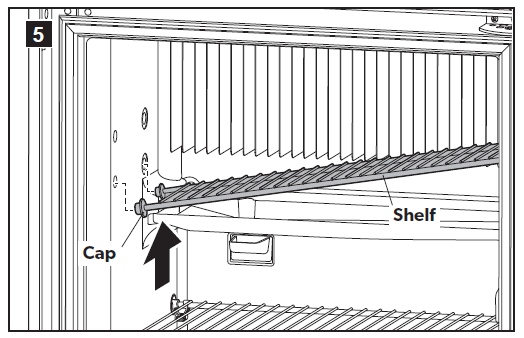

Slide the shelf to the left until the plastic caps
disengage.

4

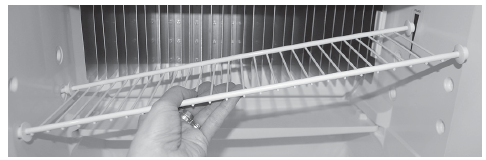

Tilt the shelf to one side at an angle while pulling forward.

5
Reposition the shelf in the desired location.

6
Insert the ends of the wire shelf on the left-hand side and slide the shelf into the holes on the righthand side.

7
Slide the plastic caps into the holes of the wall.

8
Snap the shelf locks back onto the wire shelf.
