Control panel

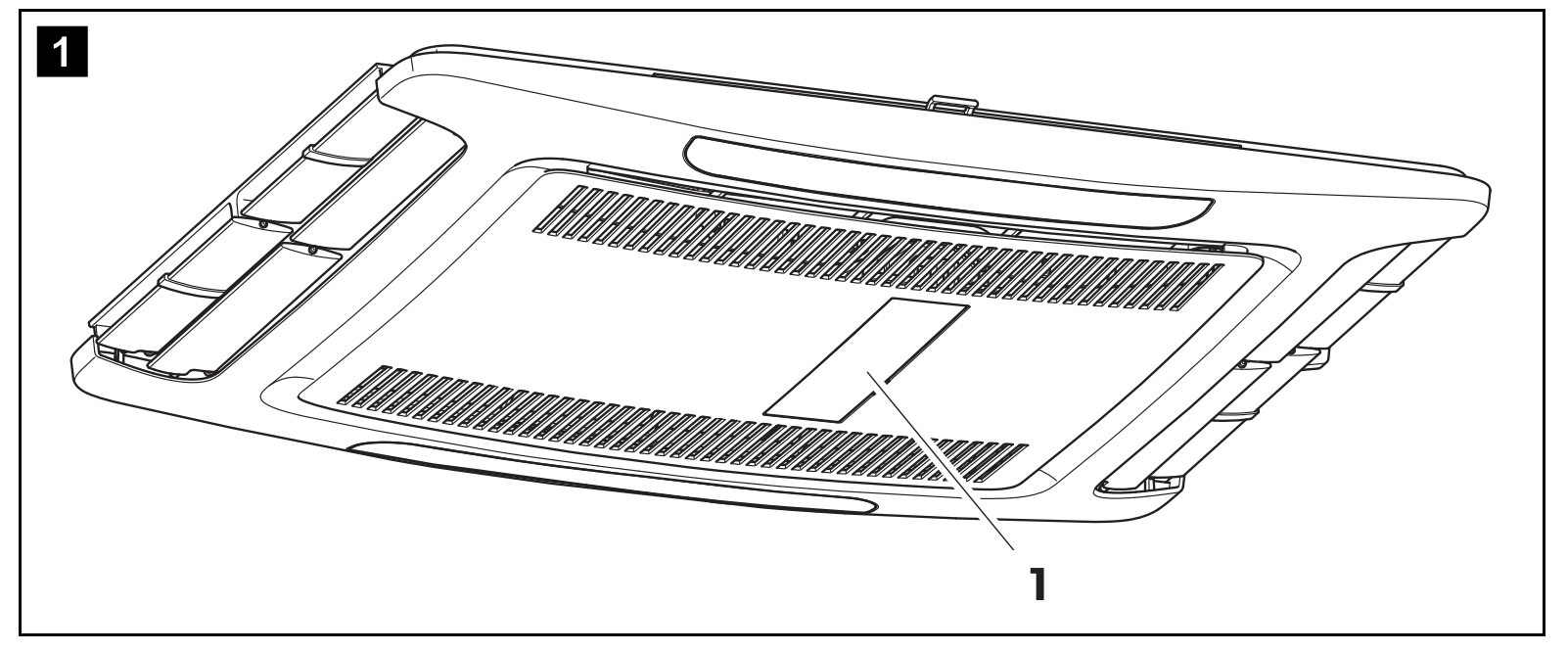

The control panel (1) is at the air outlet unit of the roof air conditioner.

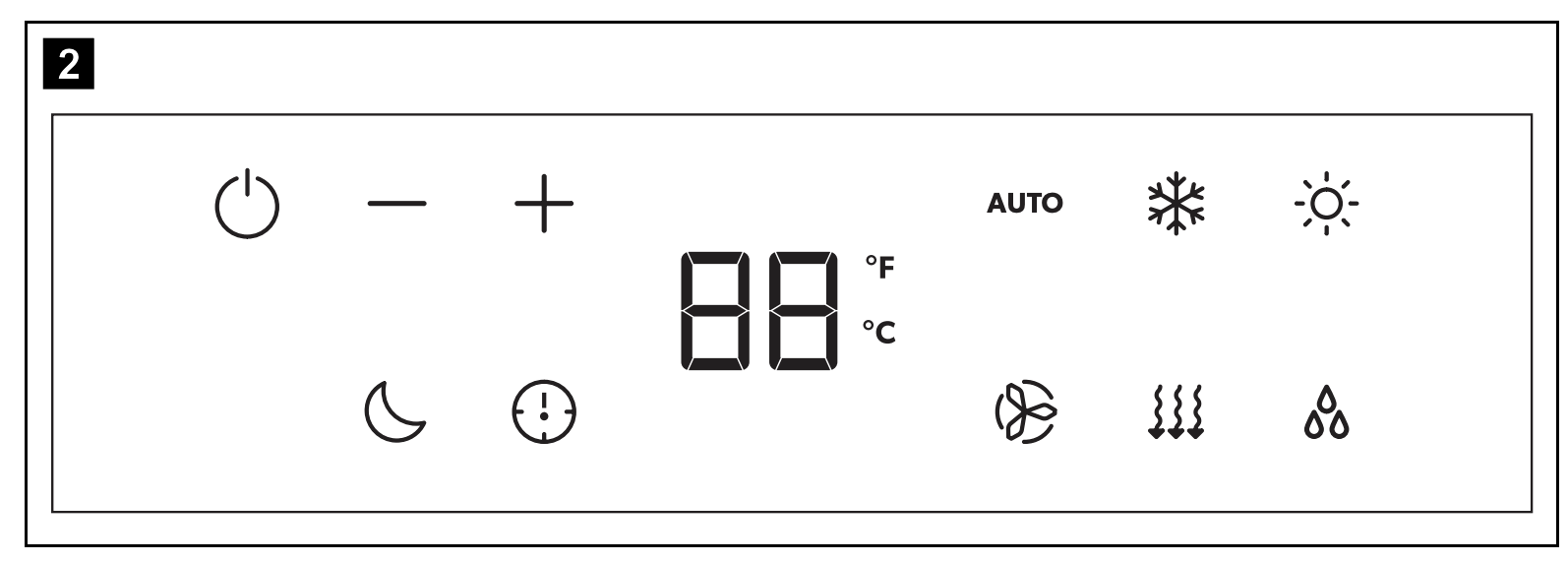

Control and display elements (fig. 2):

Symbol & Description:

Switches the roof air conditioner on or to standby mode.

Increases or decreases the currently displayed value

Activates the sleep function

Indicates the timer is set

Indicates the temperature is displayed in degrees Celsius

AUTO Enables/disables automatic mode

Enables/disables the cooling mode

Enables/disables the heating mode

Adjusts the fan speed between Low, Med, High, Turbo or Auto (shown as 1, 2, 3, 4 or AA on the air distribu-tion box display for a short time when changed)

Enables/disables ventilation mode

Enables/disables dehumidification mode
